Alternate Static Source Errors 2026

If your main static port goes out when you're in the clouds, the alternate static port is your next best bet.

But there's just one problem opening that valve comes with a handful of predictable errors that pilots need to know about, or they might end up in a world of trouble.

Here’s what you need to know immediately: when you select the alternate static source in a typical unpressurized GA aircraft, your altimeter will read high, your airspeed indicator will read high, and your vertical speed indicator will show a momentary climb before settling.

These errors occur because the alternate source draws static air from inside the cabin, where air pressure is slightly lower than the true atmospheric pressure measured at the external static port.

This article focuses on light aircraft commonly used for instrument training the Cessna 172, Piper PA-28, Beechcraft Bonanza, and Diamond DA40.

The specific error magnitudes discussed here are examples only. Your actual numbers must come from your aircraft’s POH or AFM, as variations in cabin configuration, door seals, and vents create aircraft-specific deviations.

Consider this scenario: you’re departing IFR in a C172 on a winter morning when you notice your altimeter freezes at 3,000 feet while your VSI pegs at zero. You’ve just entered the clouds after climbing through light rain, and you suspect the static port has iced over.

You flip the alternate static source and suddenly your altimeter leaps up about 75 feet, and your VSI shoots up like a rocket to 300 fpm climb before it finally levels out.

If you don't know what you're looking at here and overcorrect, you just might end up crashing into rising terrain.

Forgetting what happens with alternate static source errors has been known to contribute to a few pretty scary situations, like loss of control or controlled flight into terrain usually in the clouds, and on a dark night with no visual references.

Why Alternate Static Air Creates Pressure and Indication Errors

The cabin or internal fuselage of an unpressurized aircraft typically experiences lower pressure than the free-stream static air pressure outside.

This pressure difference stems from several aerodynamic factors working simultaneously.

As the air flows over the fuselage it creates sort of a wind tunnel effect, which creates areas of lower pressure right next to the plane's skin.

And then there's also the way the airflow sticks to the plane that boundary layer stuff again which creates tiny low pressure zones around every little hole or crack in the aircrafts airframe.

The propeller slipstream further accelerates air along the fuselage, compounding these effects. The result is a slight vacuum inside the cabin relative to the true external atmospheric pressure.

When you select the alternate static air source, your flight instruments are suddenly exposed to this lower pressure.

These pressure changes are part of the broader family of pitot-static blockage errors that affect the altimeter, airspeed indicator, and vertical speed indicator.

Because the static system now “thinks” the aircraft is at higher altitude (lower pressure equals higher altitude in the standard atmosphere), the instruments react accordingly.

The altimeter immediately indicates a slightly higher altitude than your actual altitude. The airspeed indicator shows airspeed greater than actual airspeed because the pressure differential between pitot tube pressure and static appears larger.

The VSI interprets the sudden pressure drop as a momentary climb, displaying a transient positive vertical speed before stabilizing.

The magnitude of these errors depends on your specific airframe. A typical C172 might show deviations of tens of feet on the altimeter and a few knots on the ASI, but your POH provides the authoritative numbers for your aircraft.

Typical Instrument Errors with Alternate Static Source Selected

The following sections break down the specific errors you’ll observe on each affected instrument when operating with the alternate static source.

These patterns assume a typical unpressurized GA configuration where cabin pressure runs lower than external static pressure.

When you switch to the alternate source in a C172, PA-28 or similar trainer, you can expect the altimeter and VSI to go haywire for a split second, and then you're left with a steady bias that sticks until you flip back to the primary static source.

Everything I've listed below is just a rough guide always refer to your POH for specifics.

Altimeter Errors on Alternate Static

Lower static pressure from the cabin causes the altimeter to overread, indicating higher than your actual altitude.

As you pull the alternate static valve, watch for the altimeter pointer to make a small, abrupt jump upward typically 40 to 100 feet in a non-pressurized single before stabilizing at its new, biased reading.

In many C172 models, the POH notes that selecting alternate static will cause the altimeter to read approximately 50 to 150 feet high.

Some POHs cite even smaller deviations one aircraft’s documentation describes altimeter variations of only 15 feet under most adverse conditions. The exact figure is model-specific and affected by cabin configuration.

This error becomes safety-critical during IFR approaches. Consider a non-precision approach with an MDA of 1,200 feet MSL and obstacles at 1,100 feet.

If your altimeter reads 100 feet high, you might believe you’re at MDA when you’re actually at 1,100 feet right at obstacle height.

During IMC operations, pilots must mentally subtract the known bias or apply published corrections when honoring MEAs, MDAs, or decision altitudes.

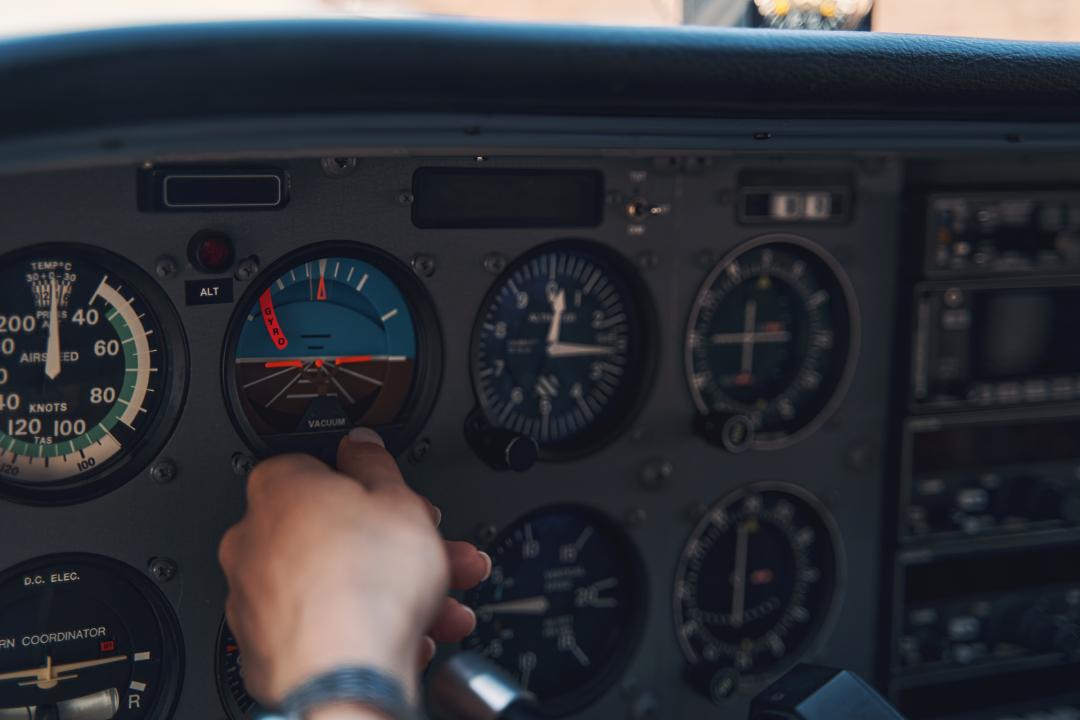

Airspeed Indicator Errors on Alternate Static

The airspeed indicator computes indicated airspeed by measuring the pressure differential between pitot total pressure (ram air pressure) and static pressure.

When static pressure is artificially lower (from cabin air), this differential increases, and the ASI displays a higher indicated airspeed than your actual airspeed.

In abnormal situations, such as a drain hole blockage, this pressure relationship can behave differently and lead to misleading indications.

When you switch to alternate static, you can expect the airspeed reading to jump up by a few knots (typically) and then settle down into something that's a bit too high compared to your actual airspeed.

In a typical C172, the pilot's operating handbook might say you're looking at a bit too high an airspeed reading of between 3 and 7 knots during cruise when using alternate static.

One POH excerpt describes airspeed variations of no more than 2 mph (roughly 2 knots) under adverse conditions.

The thing is, on approach this becomes a big deal. If you’re already factoring in a 5 knot wind correction, but you don't know you're also getting a 5 knot overread on your airspeed indicator, that just means your getting 10 knots more speed than you think you are.

So check your airspeed reading against your GPS ground peed and also check your power settings.

When your GPS is saying you’re doing 95 knots over the ground with no wind and your ASI is telling you you're doing 105 knots, that's a pretty clear sign that your alternate static is causing you to get an overread.

VSI Errors on Alternate Static

The vertical speed indicator measures the rate of change in static pressure through a calibrated leak in its case. When you switch to the alternate static source, the abrupt pressure step creates a transient response.

Pilots typically observe a momentary climb indication of 200 to 500 fpm immediately after pulling the alternate static knob.

This false climb lasts only a few seconds before the needle settles near zero in level flight. The VSI essentially “sees” the sudden pressure drop as the aircraft climbing rapidly, then stabilizes once pressures equalize.

In steady flight, long-term VSI bias is often minimal, though some POHs note minor constant offsets during climbs or descends.

The transient jump poses the greater hazard. Imagine you’re already task-saturated in IMC, hand-flying an approach, when you select alternate static.

You can imagine this all too easily: you're completely focused on getting the plane down safely, then you switch on the alternate static and suddenly the VSI is showing a 300 feet per minute climb.

Without a heads-up, some pilots would push the nose down to “stop the climb”, and then whoops you're heading for the ground. Getting ahead of this problem is the key to avoiding that sort of overcorrection.

If the alternate static is created by smashing the VSI glass, that's one instrument in the static system you can't trust now.

Mitigating Alternate Static Source Errors in Real Operations

Alternate static use should trigger deliberate cockpit configuration and workload management steps to minimize additional errors.

First, stabilize cabin pressure. Close storm windows, secure door latches, minimize fresh-air vents, and use cabin heat to reduce pressure gradients and leaks. A more stable cabin pressure means more predictable instrument biases.

Second, apply mental corrections. If your POH indicates a 100-foot altimeter overread, mentally subtract 100 feet from your indicated altitude when verifying MEA compliance or approaching MDA.

If airspeed reads 5 knots high, adjust your target approach speed accordingly.

Third, be super vigilant with your cross-checks. Compare your indicated alt and airspeed with your GPS derived ground speed, what your vertical navigation profile on your GPS approach says, and what you know from your training about pitch and power.

Your attitude indicator isn't going to be affected by your static system, so that's what you want to look at as your main pitch reference.

If your airspeed seems out of whack with your power settings and pitch attitude, then just go with what you've learned - it'll help you feel more in control.

Brief alternate static procedures before entering icing or convective weather. Include them in periodic recurrent training and simulator sessions.

Familiarity with the resulting instrument behavior prevents startle factor when you need the alternate static system for real.

IFR Considerations and Regulatory Perspective on Alternate Static Errors

Under IFR, accurate altitude reporting is critical for terrain and traffic separation. Known instrument errors must be accounted for when determining obstacle clearance and compliance with assigned altitudes.

Some AFMs and POHs explicitly allow continued IFR operation with the alternate static source selected, provided the pilot applies documented corrections.

Others may include limitations worth reviewing before you need them. Check your aircraft’s documentation during preflight planning, not while troubleshooting in the clouds.

ATC radar altitude checks provide rough cross-verification request an altitude readout to compare against your indication. However, recognize that your transponder encoder typically shares the same static system.

If you’ve selected alternate static downstream of the encoder’s connection point, the transponder will transmit the same biased altitude that you’re seeing on your altimeter.

Brief alternate static effects during instrument approaches, especially non-precision procedures and operations in mountainous terrain. A 100-foot error that seems minor in flat country significantly reduces safety margins near terrain.

If your approach requires 250 feet of obstacle clearance and your altimeter reads 100 feet high, you’ve lost nearly half your margin.

Include alternate static use and error management in formal instrument proficiency checks and simulator scenarios.

If your autopilot uses air data from the affected static system, consider flying manually the autopilot may chase erroneous indications, compounding the problem.

Practical Tips, Training Recommendations, and Summary

The key error pattern is consistent: when using cabin-based alternate static in a typical unpressurized GA airplane, expect altimeter high, airspeed high, and VSI momentary climb. Exact numbers come from your POH.

Next time you suspect something is up with the static system, its a good idea to go through things in a logical order. First off, work out if the problem is with the static system, or the pitot system, such as a blocked pitot tube, or just one instrument that's gone haywire.

You can do that by cross-checking the standby instruments, checking the GPS ground speed and having a look at how the power settings and attitude are matching up with performance.

If you find out its a static blockage, then switch to the alternate static system just be prepared for the instruments to jump around a bit.

To keep things stable, close up any vents and make sure all the doors are secure. Then cross check your instruments against the GPS and what you know about the plane's performance to keep a clear picture of what's going on.

If you need to land with the alternate static system switched on, just go over the expected errors with your passengers before starting the approach that way you can make it down safely.

Read the specific AFM/POH section on alternate static source and pitot static system for your aircraft, especially when dealing with pitot static system failures.

Note any calibration tables and limitations. Add those numbers to your personal quick-reference card or kneeboard.

CFIs should routinely demonstrate alternate static selection during clear-day training flights. Coordinate with ATC if operating IFR so altitude deviations don’t create conflicts.

Letting students see the errors builds trust in the corrected picture rather than panicked reactions to transient indications.

This type of instrument-system knowledge is different from a consumer flight rating, but it is essential for pilots learning how aircraft instruments behave during IFR operations.

The alternate static system is a useful tool when the primary static ports fail it gives you the static pressure your instruments need.

But they introduce their own set of problems that you need to know about and practice before you need to deal with them for real in IMC. T

he smart money is on learning these patterns in a training session in good weather, not in the heat of the moment when you're hand-flying an instrument landing and the terrain is closing in.
